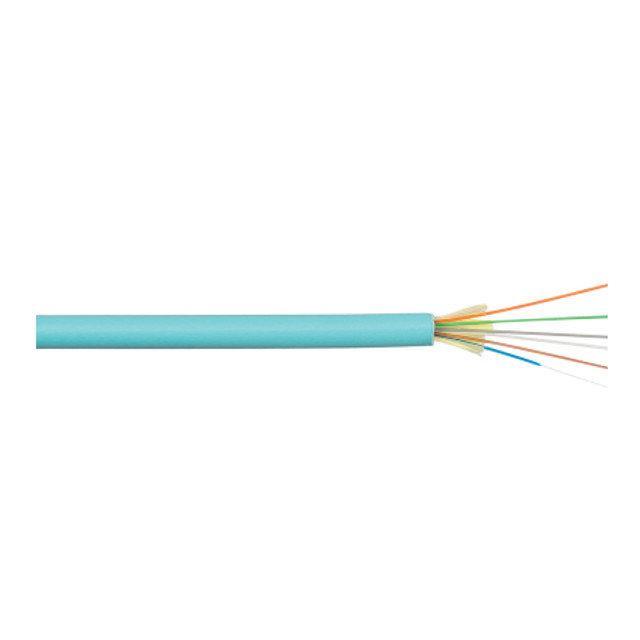

AMP CONNECT® SPARX® Fiber optic cable Multi-mode OM4, Indoor/Outdoor, 24 core, Tight Buffer, CM, Non-Armoured
| Product Classification | |
|---|---|
| Regional Availability | Asia | Europe | Middle East | Africa |
| Portfolio | SPARX® |
| Product Type | Fiber Indoor/Outdoor cable |
| Product Series | MM Fiber |
| General Specifications | |
| Subunit Type | Gel-free |
| Flame Rating | Flame-retardant | non-corrosive/low-smoke | zero-halogen (FRNC/LSZH) material |
| Cable Type | Tight Buffer Tube |
| Construction Type1 | Non-armored |
| Application | General building applications | General Purpose Horizontal | Vertical Riser | Indoor horizontal |Outdoor Duct |
| Cable Design | |
| Fiber Count | 24F |
| Number of ripcords | 1 ripcord |
| Fibre colouring | Blue-orange-green-brown-grey-white-red-black-yellow-Violet-pink-turquoise-blue*-orange*-green*-brown*-grey*-white*-red*-black*-yellow*-violet*-pink*-Turquoise* |
| Fiber per tube | 1F |
| Outer jacket colour | Aqua. |
| Central element | Yarn |
| Outer Jacket Material | Flame-retardant | non-corrosive/low-smoke | silicon-free | zero-halogen (FRNC/LSZH) material |
| Mechanical Specifications | |
| Minimum Bend Radius, operation | 135 mm |
| Nominal outer diameter | 9.1 mm |
| Max. tensile strength for installation | 2000 N |
| Crush resistance | 1500 N/10 cm |
| Minimum Bend Radius, installation | 160 mm |
| Optical Specifications | |
| Fibre category | OM4 |
| Maximum Attenuation | 3.0 dB/km / 1.0 dB/km |
| Wavelengths | 850 nm / 1300 nm |
| Fibre Type | Multimode |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 4700MHz/km |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz*km / 500 MHz*km |
| Environmental Specifications | |
| Temperature range, installation | -10 °C to 60 °C (14 °F to 140 °F ) |
| Temperature range, operation | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Temperature range, storage | -40 °C to 70 °C (-40 °F to 158 °F ). |
| Regulatory Compliance/Certifications | |
| Design and Test Criteria | ANSI/ICEA S-104-696 | NFPA 262 (for plenum - riser and general building applications). |
| ROHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | Flame retardant according to IEC 60332-1-2 (single cable) | IEC 60332-3-24 (bunch of cables) | Low smoke according to IEC 61034 | Non-corrosive according to IEC 60754-2 | Reaction to fire according to EN 50575 and EN 13501-6 |
