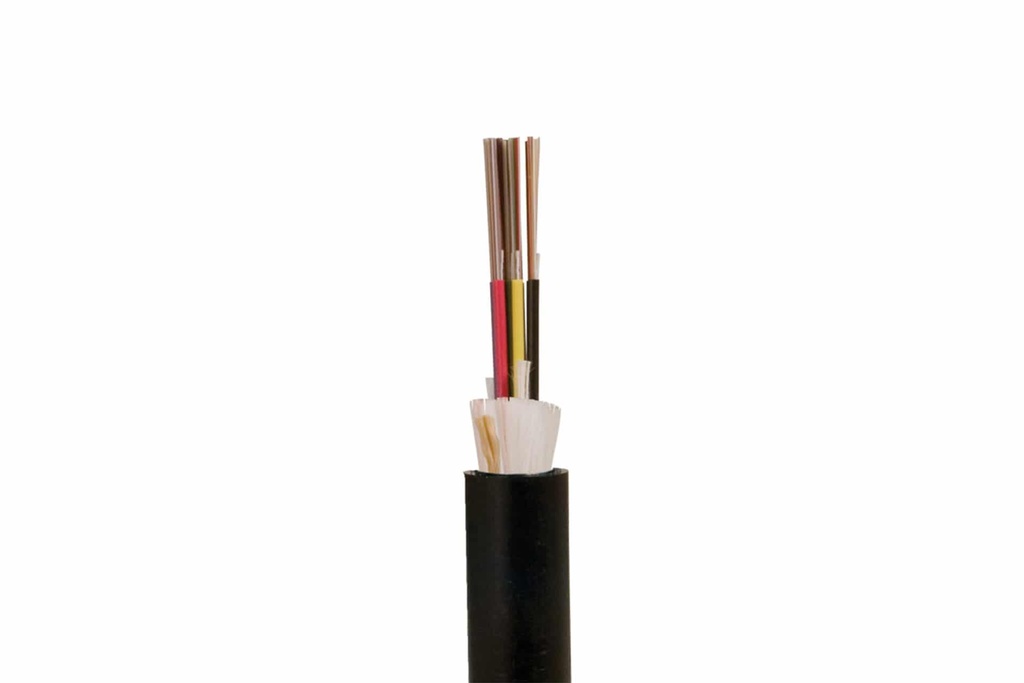

AMP CONNECT® SPARX® Fiber optic cable Multi-mode OM3, Indoor/Outdoor, 12 core, Loose Tube, LSZH, Non-Armoured
| Product Classification | |
|---|---|
| Regional Availability | Asia | Europe | Middle East | Africa |
| Portfolio | SPARX® |
| Product Type | Fiber Indoor/Outdoor cable |
| Product Series | MM Fiber |
| General Specifications | |
| Subunit Type | Gel-free |
| Flame Rating | Plenum (OFNP) |
| Cable Type | Loose Tube |
| Construction Type1 | Dielectric Armour |
| Application | Aerial | Direct Buried | Duct | General Purpose Horizontal | Vertical Riser | Plenum |
| Cable Design | |
| Fiber Count | 12F |
| Number of ripcords | 2 ripcords |
| Fibre colouring | Blue | Orange | Green | Brown | Slate | White | Red | Black | Yellow | Violet | Rose | Aqua |
| Fiber per tube | 12F |
| Outer jacket colour | Black. |
| Outer Jacket Material | Flame-Retardant | UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tube Color | Aqua.. |
| REACh Regulation | REACh Declaration |
| Mechanical Specifications | |
| Minimum Bend Radius, operation | 74 mm (2.91 in) |
| Nominal outer diameter | 7.4 mm (0.29 in ) |
| Max. tensile strength for installation | 1350 N (303.49 lbf) |
| Crush resistance | 2000 N/10 cm |
| Minimum Bend Radius, installation | 111 mm (4.37 in) |
| Optical Specifications | |
| Fibre category | OM4 |
| Maximum Attenuation | 3.0 dB/km / 1.0 dB/km |
| Wavelengths | 850 nm / 1300 nm |
| Fibre Type | Multimode |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 4700MHz/km |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz*km / 500 MHz*km |
| Environmental Specifications | |
| Temperature range, installation | 0 °C to 60 °C (32 °F to 140 °F ) |
| Temperature range, operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature range, storage | -40 °C to 70 °C (-40 °F to 158 °F ). |
| Regulatory Compliance/Certifications | |
| Design and Test Criteria | ANSI/ICEA S-104-696 | NFPA 262 (for plenum - riser and general building applications) |
| ROHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code® (NEC®) OFNP | CSA FT-6 |
